Small Package
BlinkStick Square combines the features of BlinkStick Pro into one small package.
Eight Bright LEDs
Why limit yourself to one pixel when you can have 8 and control them individually?
Ready to Use
BlinkStick Square comes pre-assembled and ready to connect to your computer with micro USB cable.
Plug-and-Play
Works on Windows, Linux and Mac OSX without the need of any additional drivers. Supported on a wide range or programming languages.
Patterns and Animations
With lots of code examples for your preferred programming language BlinkStick Square is ready to play colorful LED chasing animations.
Enclosure for Square
We now have 3D printed enclosures for BlinkStick Square!
Easy to assemble
BlinkStick Square attaches to the base of the enclosure with 4 supplied self-tapping screws and the top of the enclosure snaps to the base with clips.
Diffuses bright LEDs
The enclosure acts as a great diffuser for all LEDs.

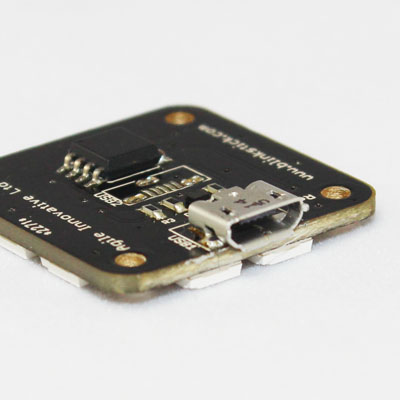

BlinkStick Square Features
- Integrated micro USB socket
- Integrated ATTiny85 with BlinkStick Square firmware
- 8 very bright individually addressable WS2812S RGB LEDs
- Maximum 2W of power output on all LEDs combined at full white brightness
- Maximum power draw 500 mA
- Powered by computer's USB port
- Works on Windows, Linux and Mac OSX without the need of any additional drivers
- Supported on a wide range of programming languages
- Supports USB 1.1/2.0/3.0
- Dimensions - length: 28 mm, width: 26 mm, height: 6.5 mmÂ
Enclosure Features
- 3D printed with PLA plastic
- Comes with 4 screws to mount BlinkStick Square to the base
- Very easy to assemble
- We will send it assembled if you order Square and enclosure
- Dimensions - length: 32 mm, width: 32 mm, height: 28 mm
Other BlinkStick products
BlinkStick Nano
Notification light for your computer running Linux, Windows or Mac OSX with LEDs on top and bottom.
- Our smallest notification light
- Two individually controlled bright full color RGB LEDs
- Plug-and-play without the need of any drivers
BlinkStick Nano Enclosure
We now have 3D printed enclosures for BlinkStick Nano
- 3D printed with PLA plastic
- Very easy to assemble
- We will send it assembled if you order Nano and enclosure
BlinkStick Flex
Flexible LED strip and BlinkStick LED controller in one package.
- Up to 32 LEDs on a single flexible strip
- Each RGB LED can be controlled individually
- Powered directly from computer's USB port
- Sticks to any flat surface
BlinkStick Strip
Eight individually addressable LEDs shaped in one line
- Integrated BlinkStick controller
- Micro USB connector
- Small size, lots of brightness
- Pre-assembled and ready to use
BlinkStick Strip Enclosure
3D printed enclosures for BlinkStick Strip
- 3D printed with PLA plastic
- Very easy to assemble
- We will send it assembled if you order Strip and enclosure
BlinkStick Strip Mini
Four individually addressable LEDs shaped in one line
- Integrated BlinkStick controller
- Micro USB connector
- Small size, lots of brightness
- Pre-assembled and ready to use
BlinkStick Strip Mini Enclosure
3D printed enclosures for BlinkStick Strip Mini
- 3D printed with PLA plastic
- Very easy to assemble
- We will send it assembled if you order Strip Mini and enclosure
BlinkStick Pro
Controller board for generic and individually addressable LED strips.
- Comes as a kit or presoldered
- Breadboard friendly
- Controls up to 192 individually addressable LEDs
- Hack into IKEA DIODER or other LED strips to create ambilight effect
BlinkStick Pro LED Adapter
Adapter for BlinkStick Pro to control single color LED strips
- Connects with BlinkStick Pro
- Terminals for LED strip and standard power supply jack
- Controls all LEDs on the strip with the same color
BlinkStick L3
All in one solution for single color LED strips
- Combines BlinkStick Pro and LED Adapter
- Terminals for LED strip and standard power supply jack
- Controls all LEDs on the strip with the same color
BlinkStick Pro Smart Pixels
Easy to solder LED pixels for BlinkStick Pro.
- Control up to 192 smart pixels with one BlinkStick Pro
- Needs just 3 wires to connect to BlinkStick Pro
- Can be chained together to create wired LED strip
BlinkStick
DYI notification light for your computer running Linux, Windows or Mac OSX.
- Comes as a kit
- Super bright full color RGB LED
- Plug-and-play without the need of any drivers
