Build your BlinkStick Pro v1.0

TIP #1: Make sure you have all components in the list.
Zoom in
Image1 Image2 Image3

Step 1 - Tools

To solder the BlinkStick you will need:

  • Basic soldering iron and some solder
  • Helping hands (not necessary but very helpful)
  • Cutters, to cut excess wires
Zoom in
Image1 Image2 Image3

Step 2 - Diodes

Solder zener diodes D1 and D2. Make sure the polarity is correct! The black stripe on the diode is represented by a white stripe on the component's symbol.

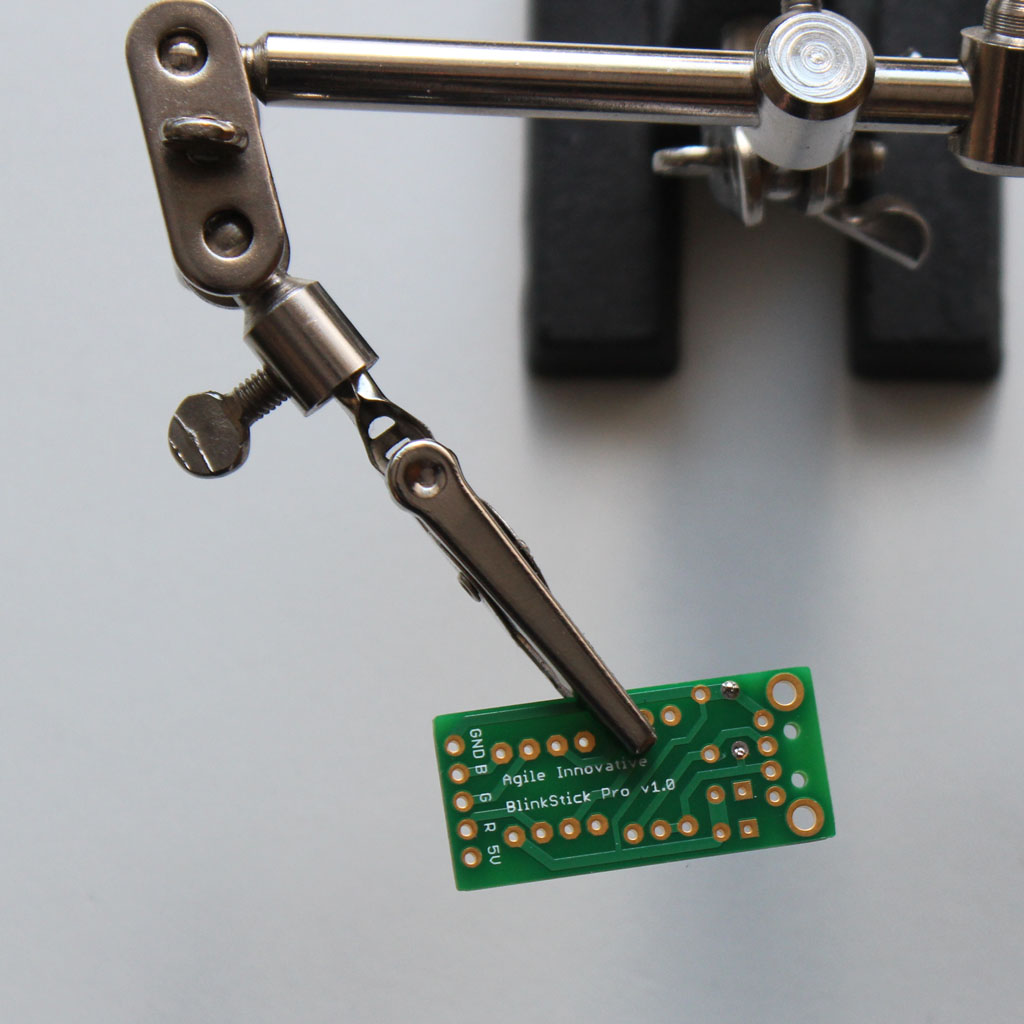

Bend diode pins as close to the diode as possible and then bend the pins outwards once inside the board so that they stay secure in the location when soldering

Zoom in
Image1 Image2 Image3

Step 3 - Soldering

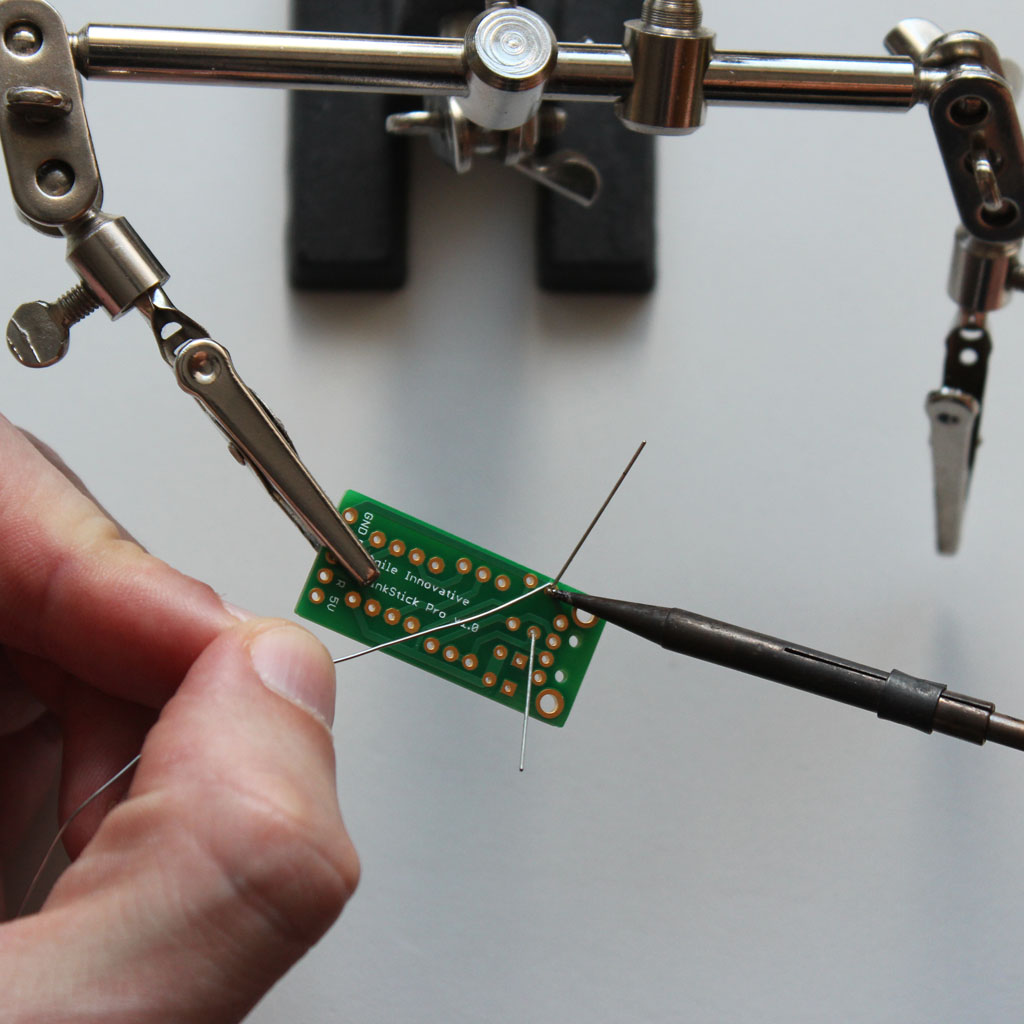

Solder the diodes and cut the excess wire near the solder joint.

Use the same technique when soldering the rest of the components.

Zoom in
Image1 Image2

Step 4 - resistors

Solder the resistors. There are 2 types of resistors:

  • R1, R2 (68 Ohms) - Blue, gray, black, gold, brown
  • R3 (2.2 kOhms) - Red, red, black, brown, brown

Remember to bend resistor pins outward so that they stay in their locations.

Zoom in
Image1 Image2

Step 5 - Capacitor C1

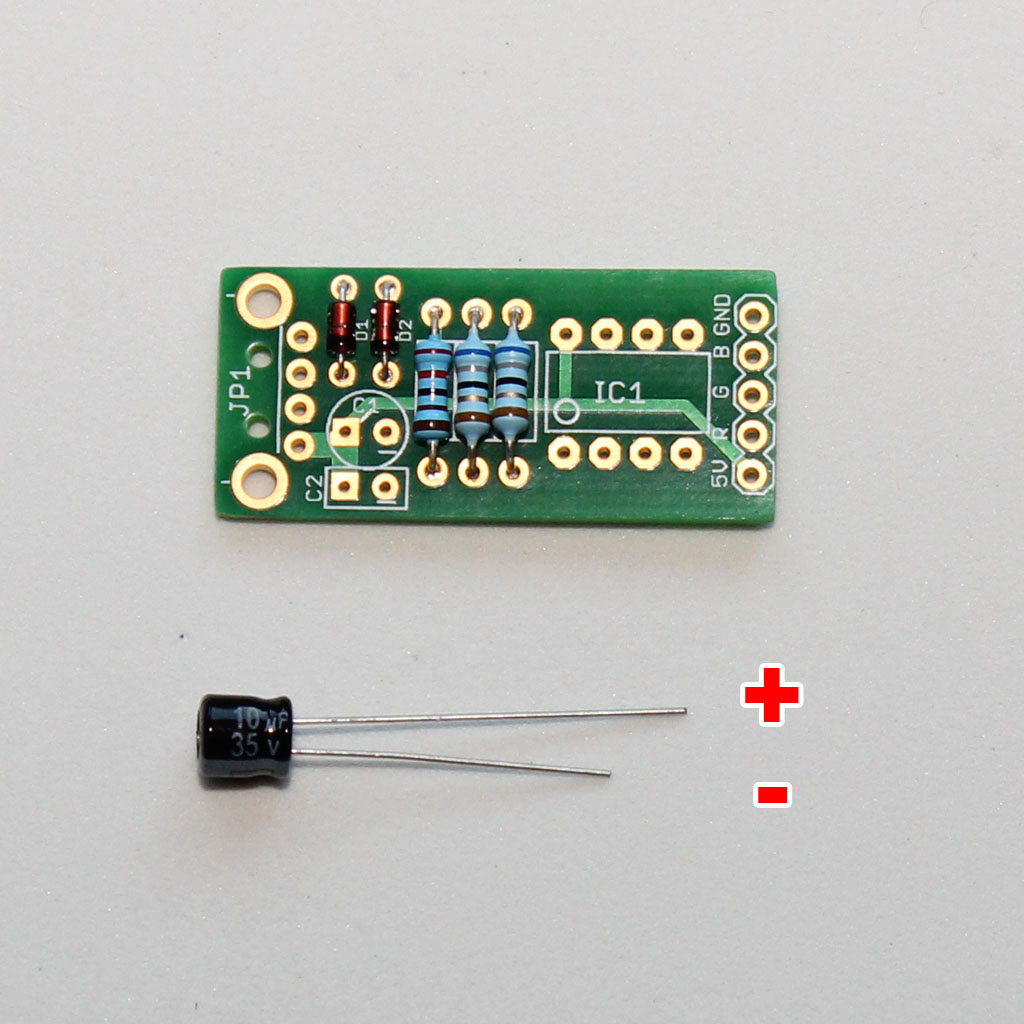

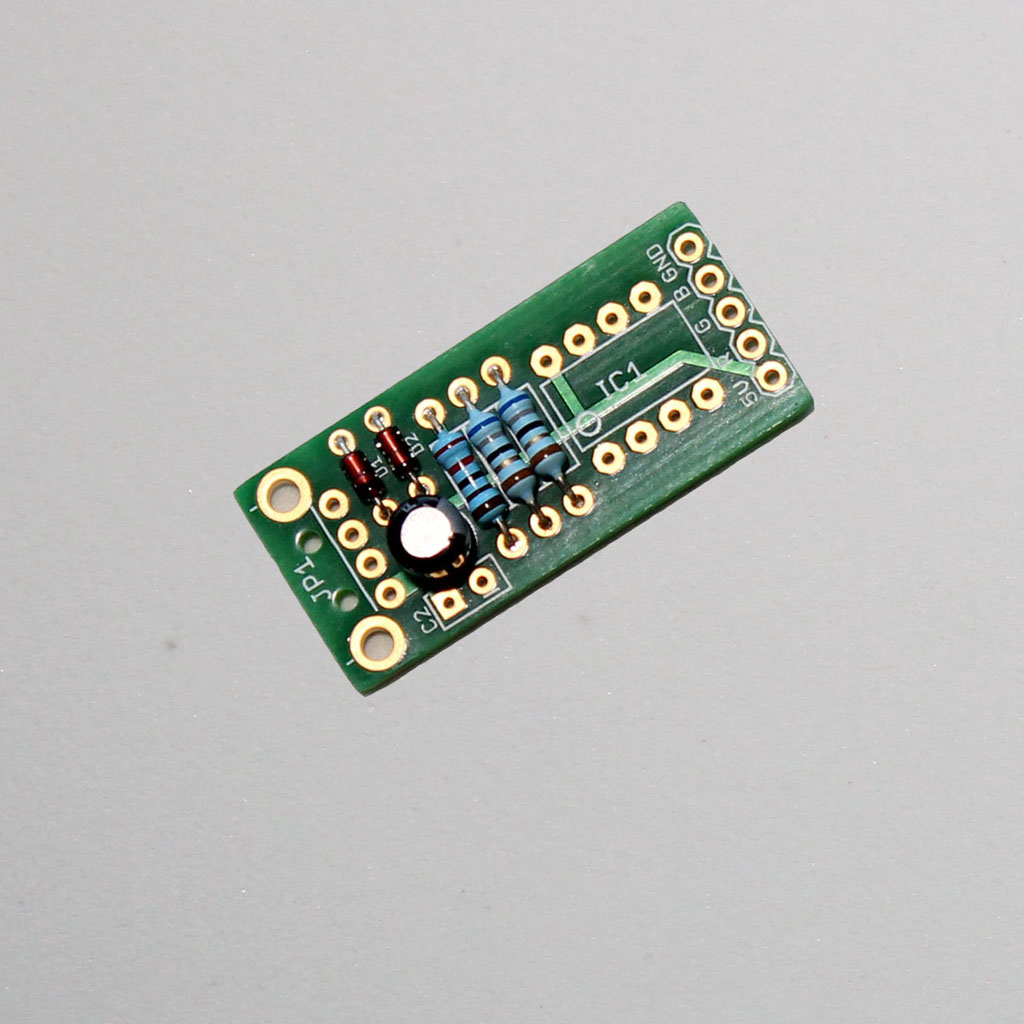

Solder the electrolytic capacitor C1. Capacitors have polarity and the longer pin is positive. The negative pin is displayed on the board with a minus sign next to it.

Zoom in

Step 6 - Capacitor C2

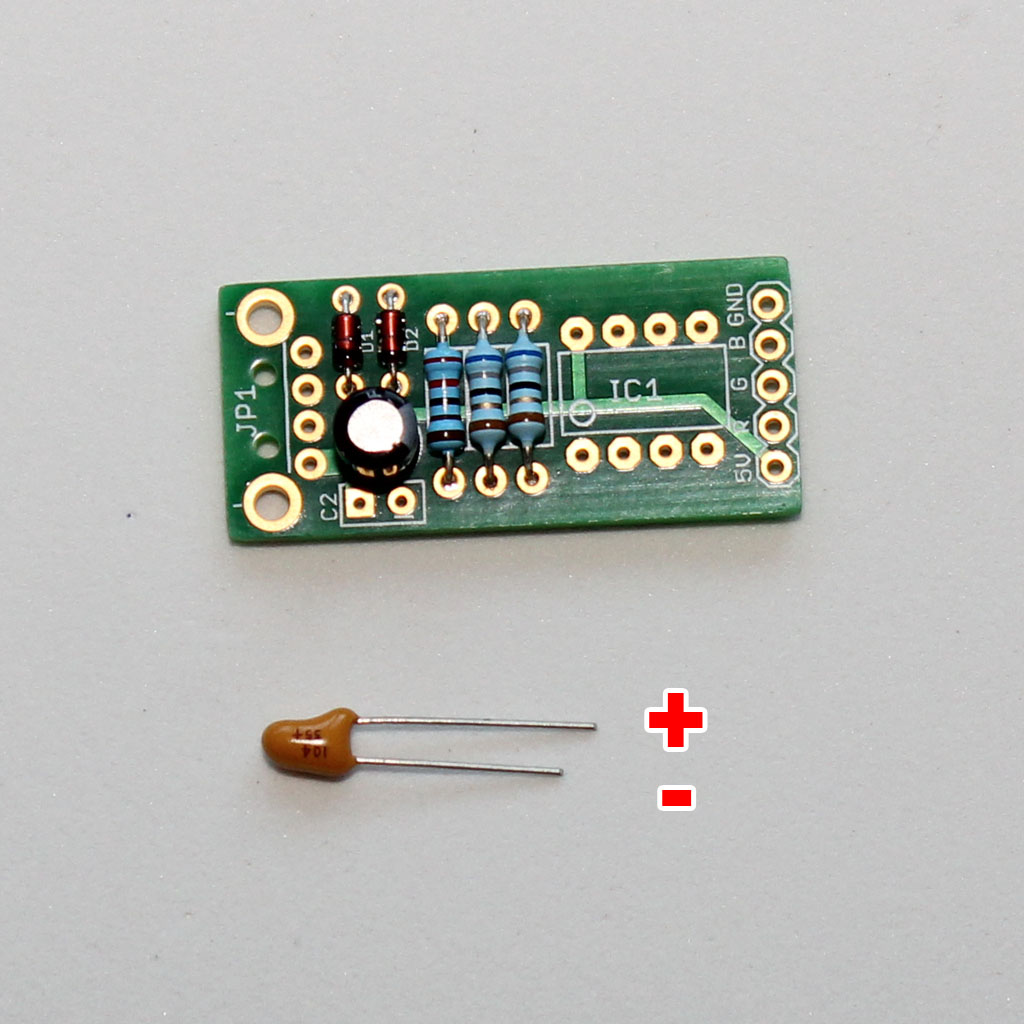

Solder the tantalum capacitor C2. It also has polarity as displayed in the picture with longer pin being positive and shorter - negative.

Zoom in
Image1 Image2

Step 7 - USB plug

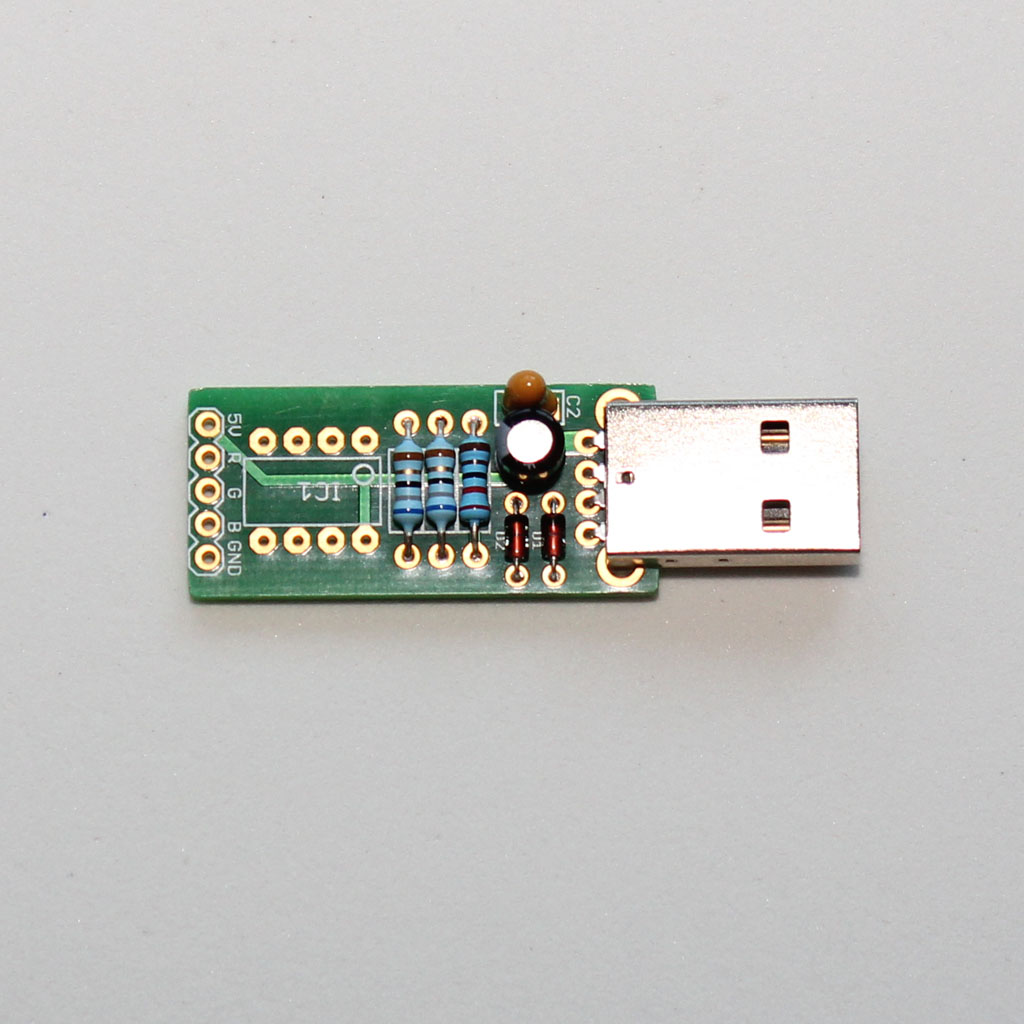

Solder USB plug JP1. The board and the plug should be nice and straight.

Zoom in
Image1 Image2

Step 8 - IC socket

Solder the optional IC1 socket. The ATTiny85 chip will be placed into the socket at a later step. The socket has a cut-out on one edge. It should be aligned as displayed in the second image.

You can also solder the chip directly to the board. In that case just follow the chip alignment instructions in the next step to correctly place it and solder the ATTiny85 instead of the socket.

Zoom in
Image1 Image2

Step 9 - ATTiny85

Plug in the ATTiny85 IC into the socket. Make sure that you plug the chip correctly! The dot on the chip should match the second image.

Zoom in
Image1 Image2 Image3 Image4

Step 10

Double check you have soldered everything correctly and placed the ATTiny85 chip with correct alignment. Your BlinkStick is ready to be plugged into your computer!

Once plugged in make sure that it's detected by the operating system. Finally it's time to connect some LEDs! Head over to the tutorials section to find instructions how to connect BlinkStick Pro to IKEA DIODER and Adafruit NeoPixels.
